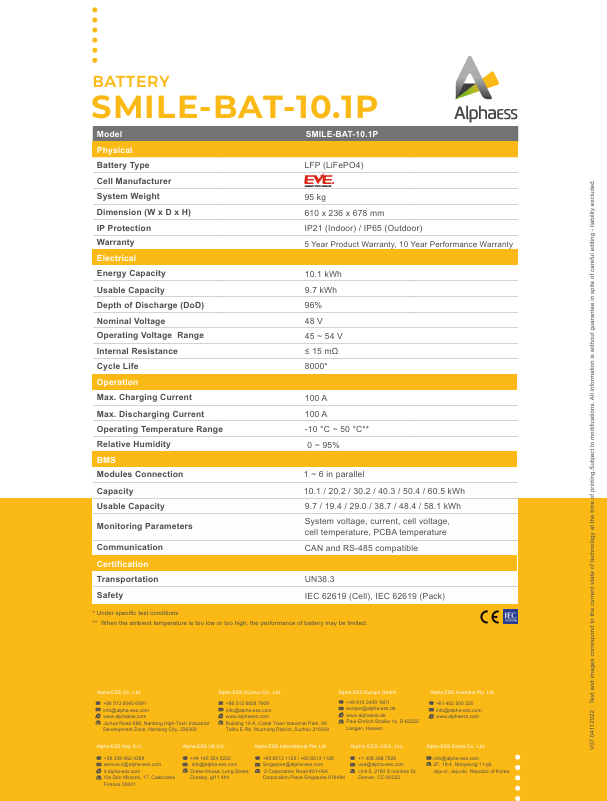

Battery Technical Specification

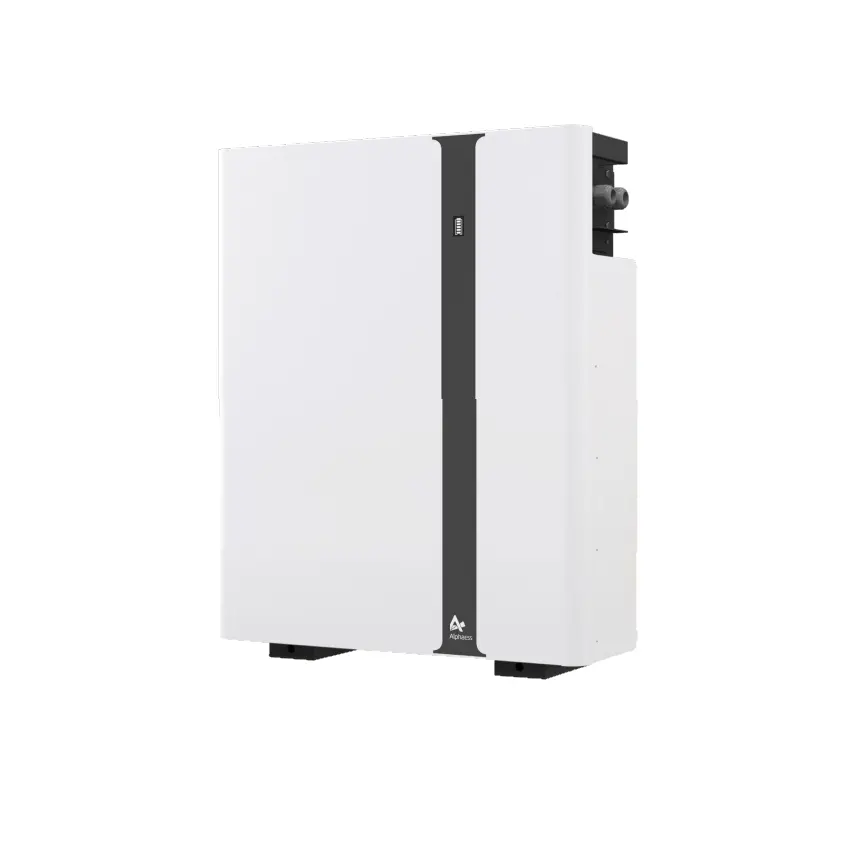

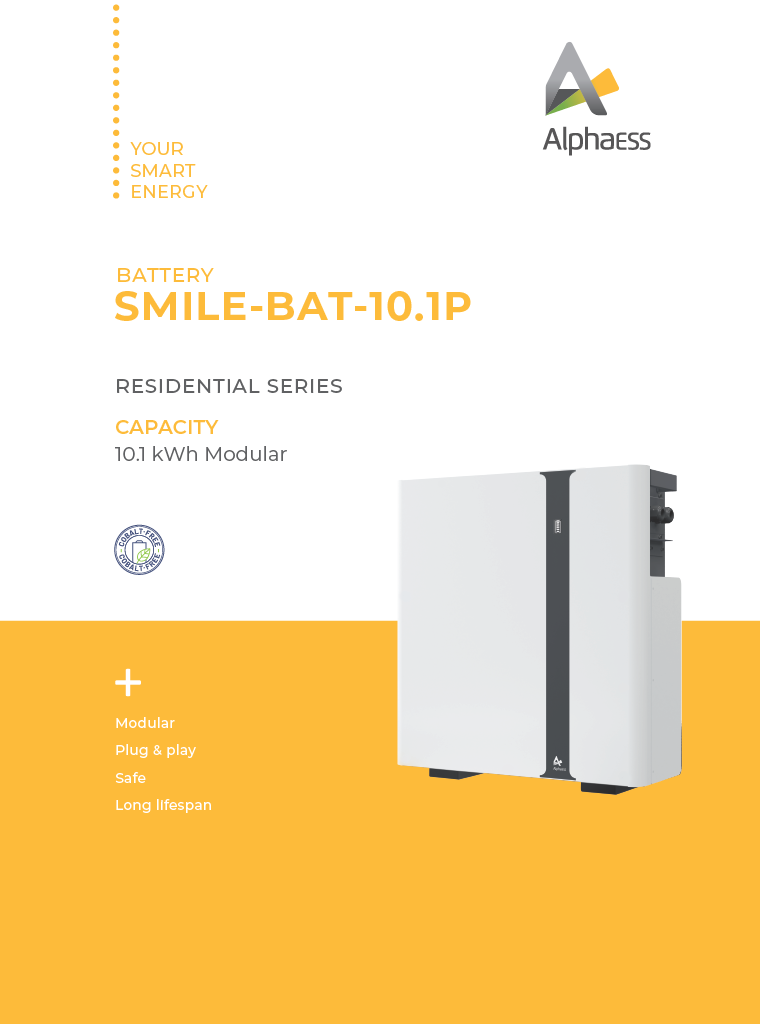

Module Model: SMILE-BAT-10.1P
Energy Capacity: 10.1 kWh (95% DoD)
Modules Connection: 1 - 6 in parallel
Max. Charging / Discharging Current: 60 A / 60A
Operating Temperature Range: 0 ~ 50℃(Charge); -10 ~ 50℃(Discharge)
IP Protection: IP65
Dimension (W x D x H): 610 x 212 x 793 mm
Weight: 90 kg
